Analogue / emergency underwater communication system

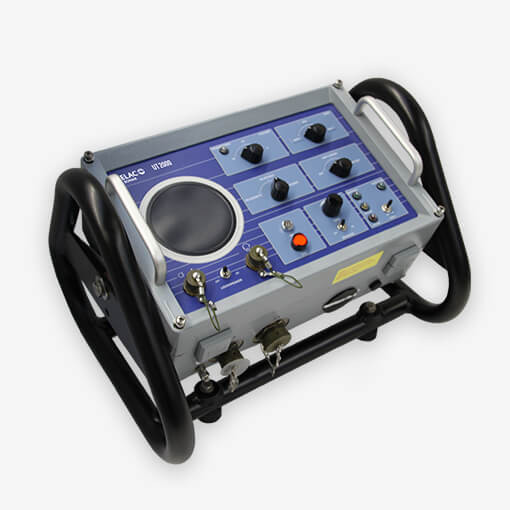

The UT 2200 is a small, emergency underwater telephone system for analogue through-water communication.
The analogue communication is compliant to STANAG 1475 and supports single-side band (SSB) communication modes for telephony (voice)
or telegraphy (morse coding). An additional pinger mode enables the UT 2200 to operate as a beacon for signaling purposes or emergency transmission.
14 different operating frequencies in the range from 8.0875 to 45 kHz are available, depending on the transducer in use. Three of these frequencies can be preset and are available directly from the front panel.
The UT 2200 can be powered by 28 V DC ships supply and is further equipped with a built-in lithium battery-pack allowing operation without ships supply power. With its ruggedised design and built-in lithium battery-pack the UT 2200 is perfectly equipped for emergency situations.
Main benefits of UT 2200
- emergency operation without accessories by additional microphone and press-to-talk switch integrated in the housing
- optimal environmental protection by rugged mechanical construction
- long operating time with internal lithium battery
- very low power consumption
- MTBF > 10,000 hours
Key features of UT 2200
- communication according to STANAG 1475
- sonar beacon operation according to STANAG 1382
- compatible to NATO underwater telephones
- compact and ruggedised design
- tested according to military standards
With its ruggedised design and built-in lithium battery-pack the UT 2200 is perfectly equipped for emergency situations.
Ready-to-use configurations
We understand the requirements needed for different operational scenarios.
We have pre-configured our products to use as stand-alone solutions or integrated system parts.
